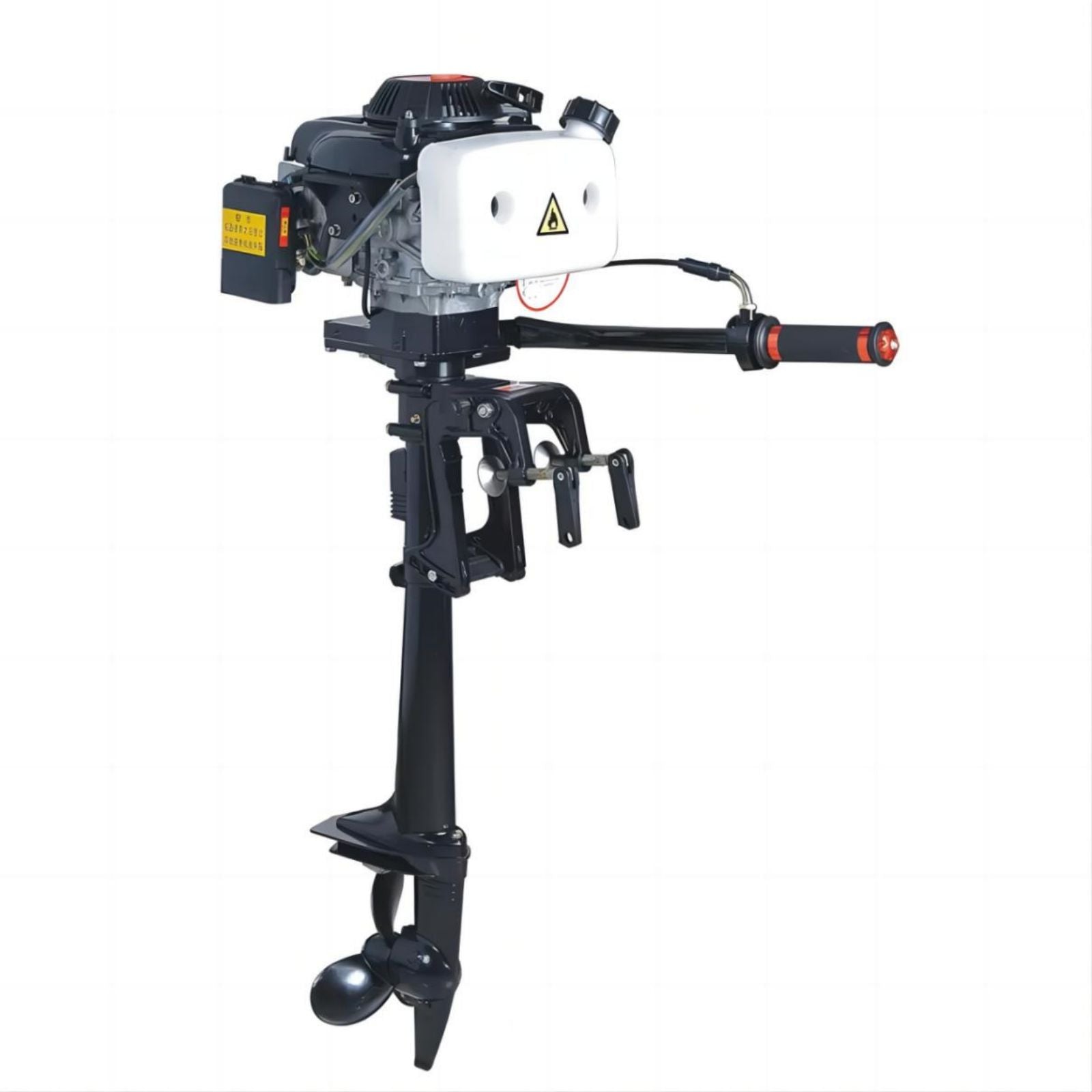

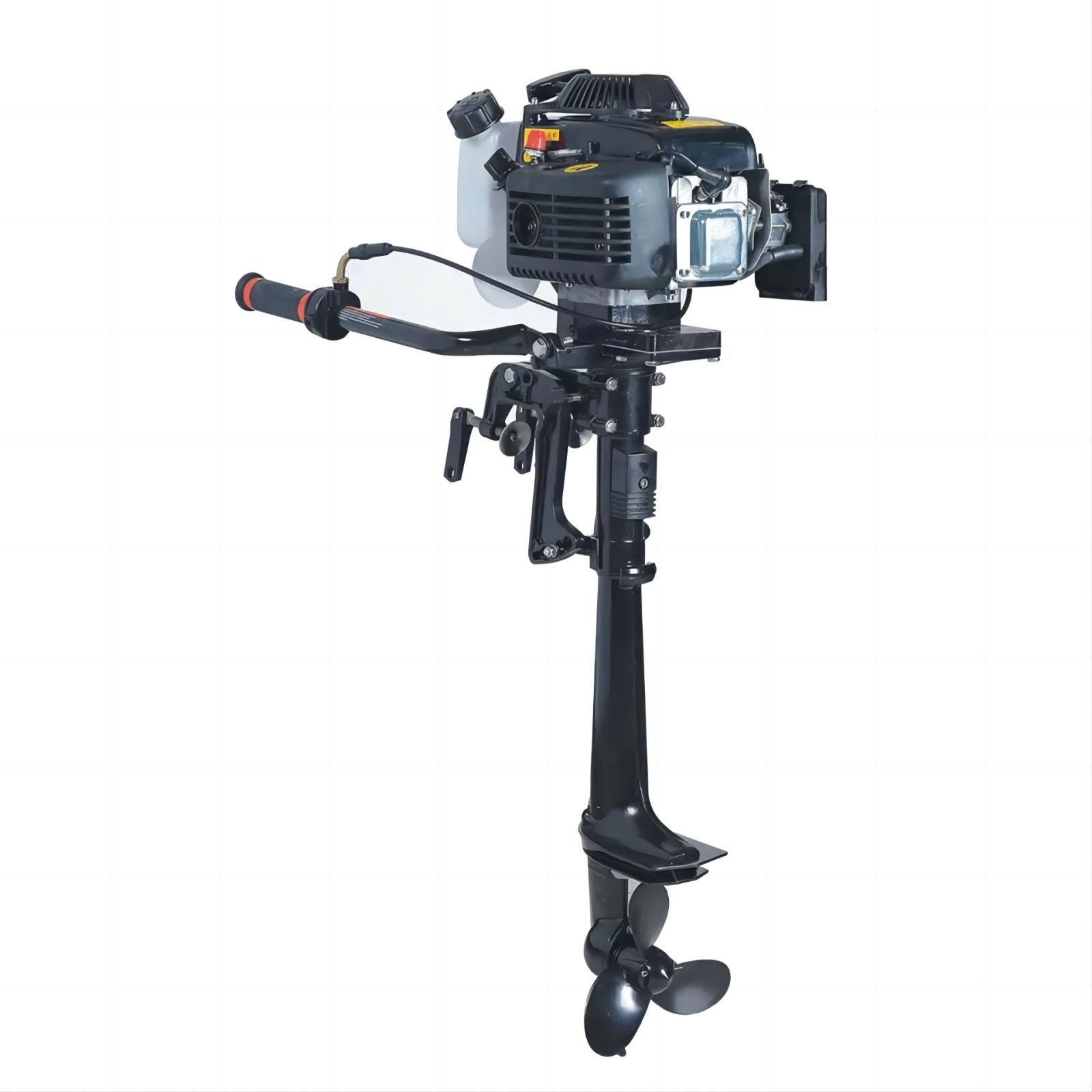

HANGKAI Outboard Motor 4 HP 4 Stroke 55CC Outboard Motor Fishing Boat Engine Air Cooling CDI System Durable Cast Aluminum Construction for Superior Corrosion Protection
Key Features：
【High Performance】Max. Output : 2.9KW/4.0HP；Full throttle operating range (rpm): 4500-5500；Displacement is 55cc.
【Air Cooling System】Superior engine air cooling technology to improve the reliability of the whole machine. Travel safer, and more Reliable.
【Wide Application】Perfect match inflatable boats, fishing boats, sailboats, and small yachts.Performance More Superior, quick start, positions the motor at several angles.
【Easy Carry and Maintain】The motor just is 10.3kg(22.5lb), you can carry it easily. We have all spare parts of our brand motor and easy to maintain.

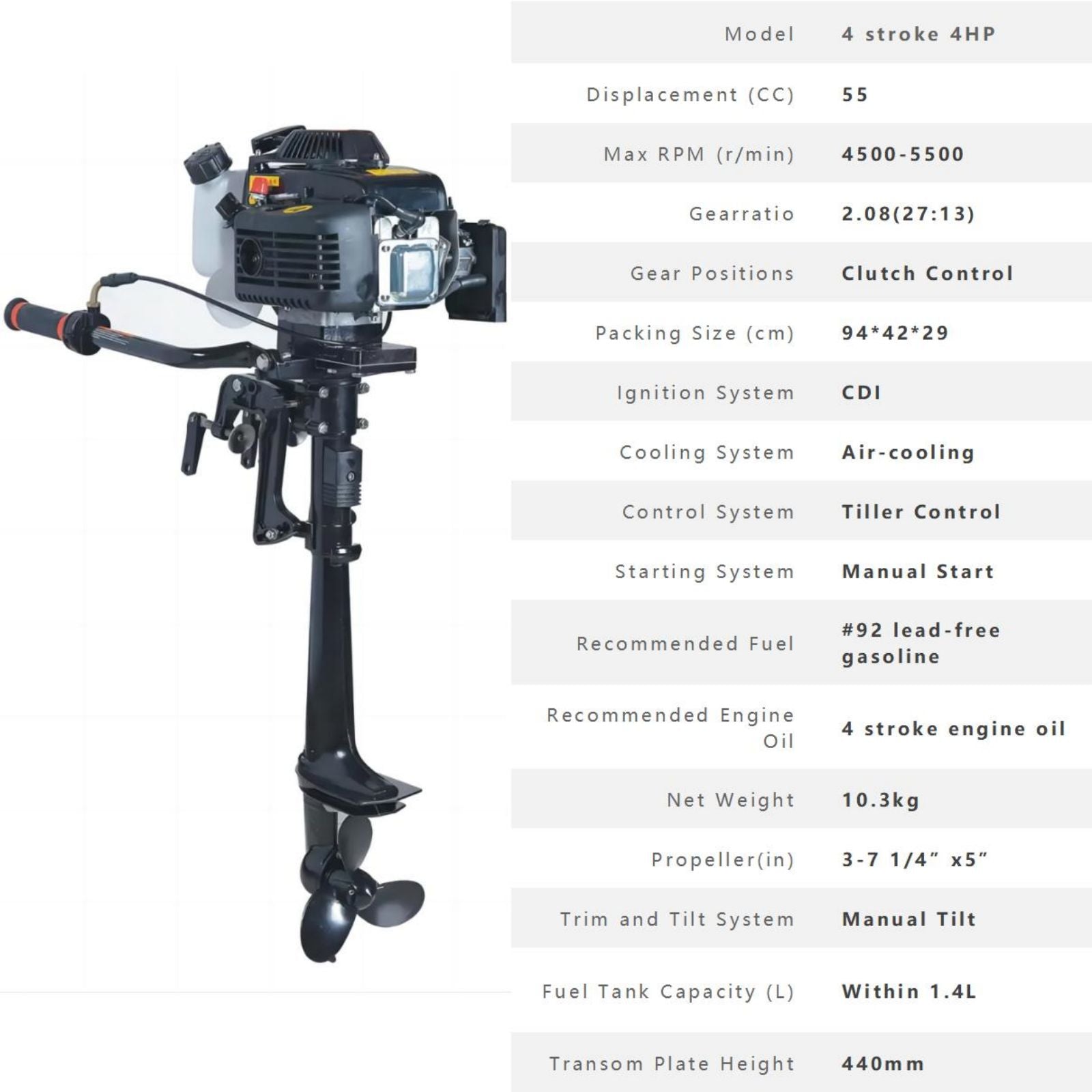

Product Specification：
Type: 4 stroke 4 horsepower
Capacity: 55cc
Transmission ratio: 2.08 (27:13)
The number of cylinders: 1
Maximum speed: 4500-5500
Maximum power: 2.9 kw
Shift position: clutch control

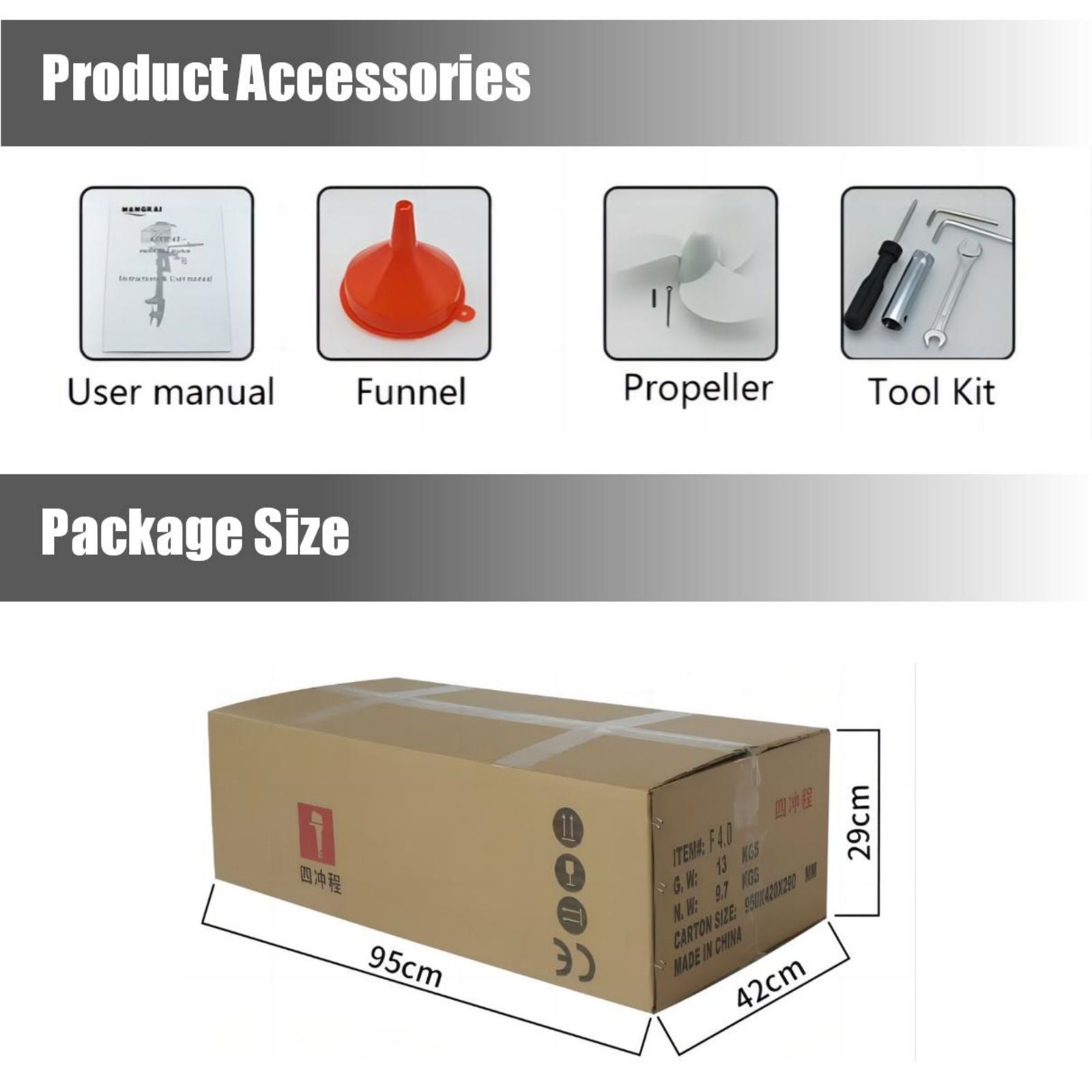

Package volume: 95x42x29 cm
Product Weight (N.W./K.W.): 10.3/13.4kg
Bore x Stroke: 44*33mm

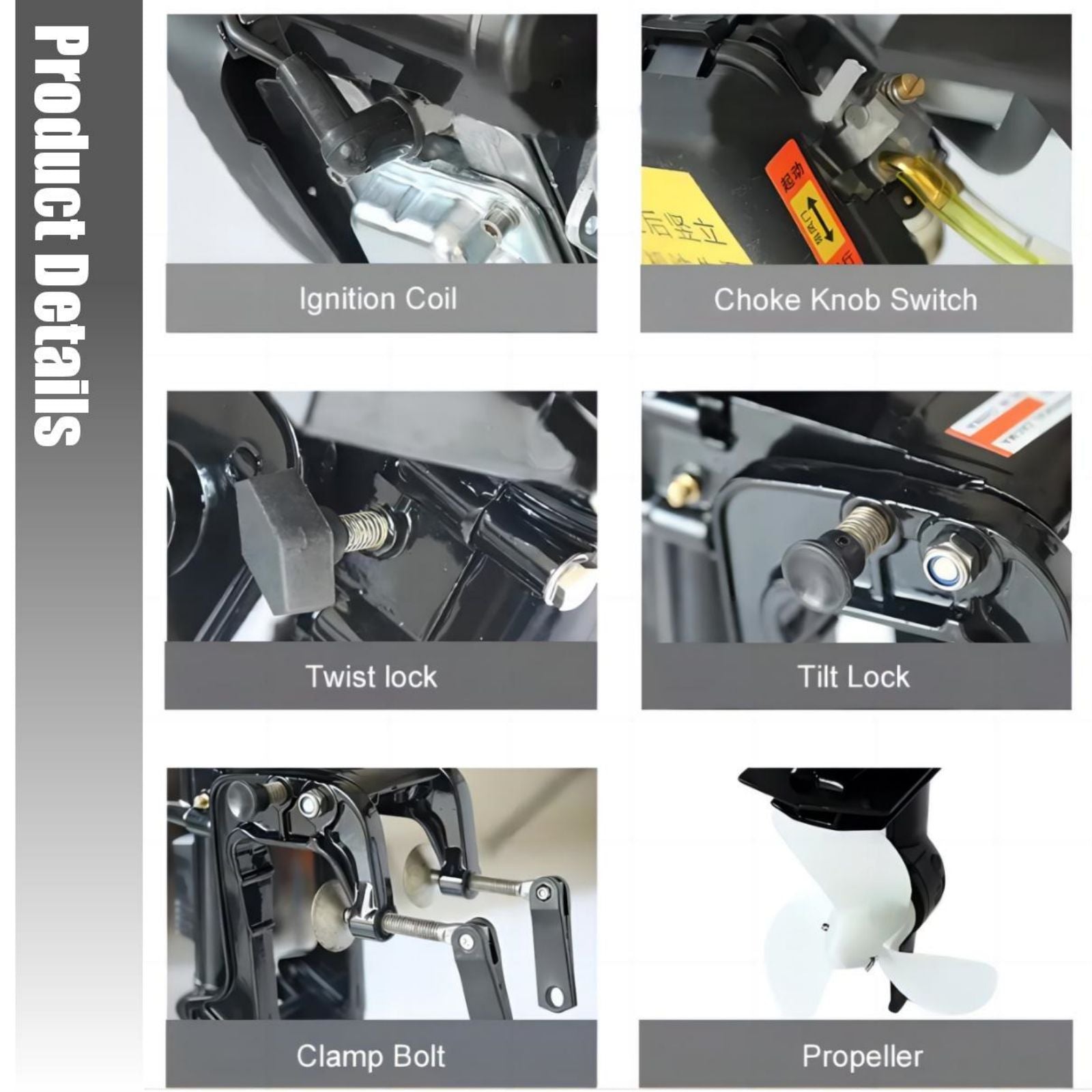

Ignition system: CDI
Cooling system: air cooling
Starting method: Manual start
Refueling: #92lead-free gasoline
Propeller size: 3-7 1/4"x5"

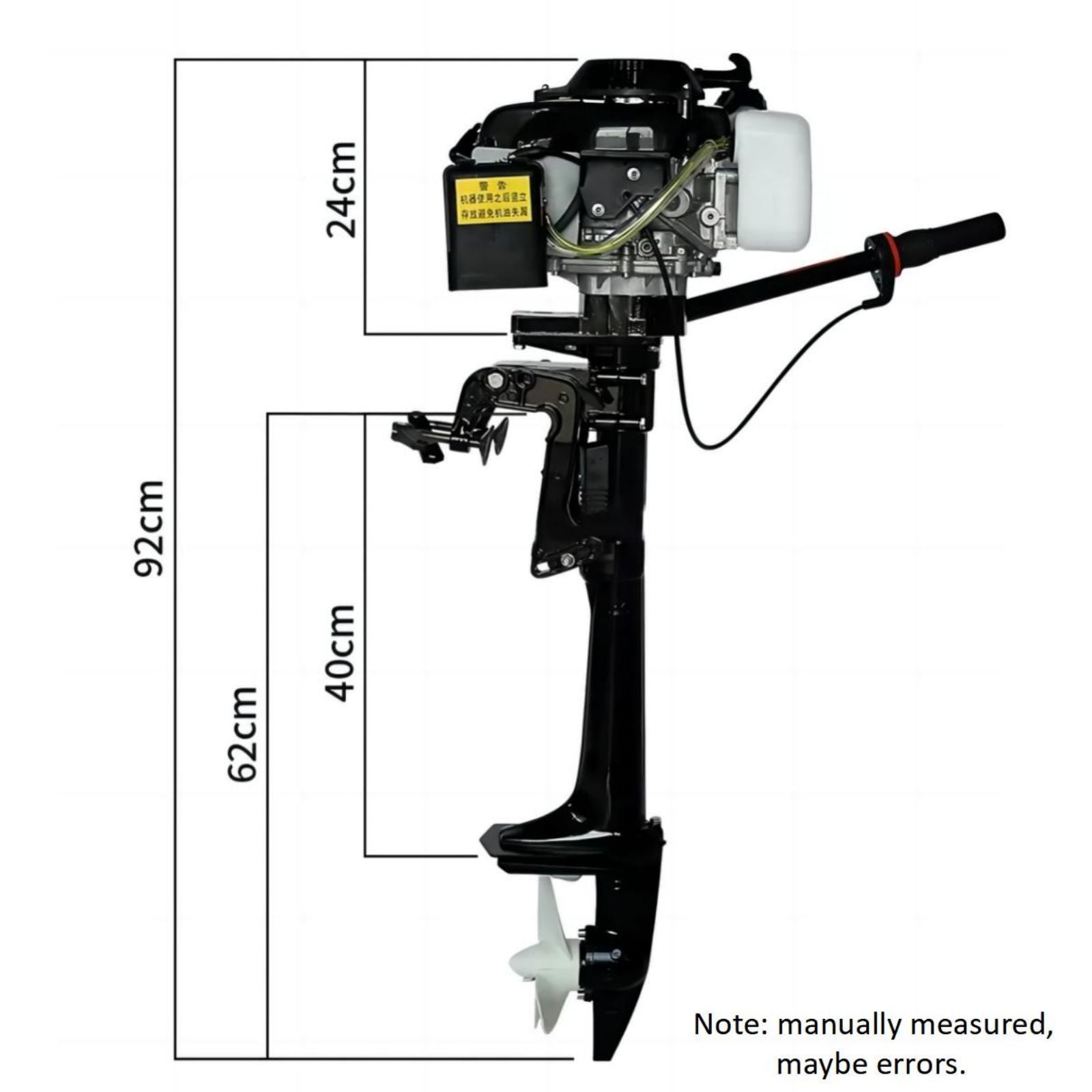

Transom plate height：44cm
Standard fuel tank capacity: 1.4 L
Recommended engine oil: 4 stroke engine oil
Trim and tilt system: Manual Tilt
Start-In-Gear protection/clutch feature prohibits prop rotation while idling convenience
Features 360 degree steering rotation for reverse without gear shifting
NOTE:
1. Use four-stroke special engine oil (automobile and motorcycle engine oil);
2. Add oil according to the scale indication on the oil dipstick (the rotating cover), do not add more or less;
3. The fuel tank of the four-stroke outboard engine can only be filled with No. 92 pure gasoline;
Cylinder Scoring is a serious damage, which caused by improper use and will cost you a lot of money to repair the motor.
Don't do the following will avoid cylinder Scoring:
1. Start the motor on bank
2. Use the motor when it stop coming out of water. Even if you want test the motor, it should be done in the river!
When there is no water coming out from the motor, please stop using it immediately, then check the impeller of Water pump or check if the water outlet has been blocked.
Must Read before use!
Firstly——Fill the gear oil (open gear box lid and fill it).
Secondly——Fill NO. 92 petrol, lightly press oil pump 6-10 times.
Thirdly——Fill engine oil don't exceed the head of the pattern.
Forthly——turn the throttle to the start up and turn the accelerator gets up to 50%. Then, rapidly pull the starter line.
★ After the motor start, please turn the throttle to running state. Then, it can be operated now.
★ After run-in period, you need to replace the gear oil second time after 100 hours running.
1. About the noise: all the gasoline machines are noisy, currently we did not test the decibel, but the noise is the same as the motorcycle, so it is a normal phenomenon
2. The machine itself is lightweight, it can use on boat weight of 100kg or less, load-bearing 4 people, but the speed is certainly not the same when one person on it or 4 people on it. Customer who has high expectations on speed, please be noticed
3. It can be marched with inflatable boats, rubber boats or fishing boats
4. Necessary: you have to prepare a boat-motor mount or Hanging board on your boat
